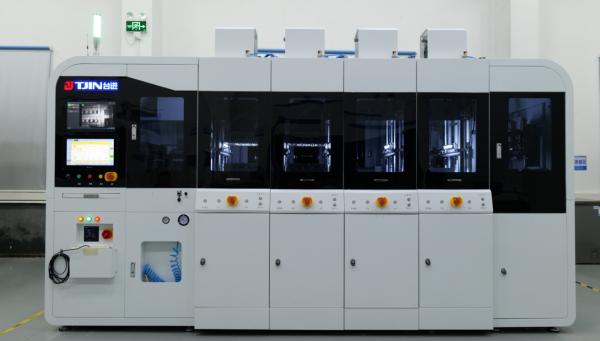

120 Tons Auto Molding System With 12KW Heating Power

Brand Name : Taijin

Model Number : 120A

Place of Origin : China

MOQ : 1 Set

Contact Now

Clamping pressure: 98-1764kN

Injection pressure: 4.9-29.4kN

Applicable lead frame/substrate size: width 20-90mm, length 124-300mm, thickness 0.15-1.2mm

Applicable EMC specifications: Diameter: Ф 11-Ф20mm (±0.2mm), length/diameter=1.2-2.0(Max 35mm)

Control system: PLC (Omron)+ host computer

Operating system: WIN10+15-inch touch screen + touch keyboard

Detection system: CCD image detection, feed anti-reverse detection

Loader: aluminum magazine

Unloader: auto stack load to box receiving

Optional: mold vacuum system, separator film system

environmental parameter requirements:

1. Temperature range: 22-28 degrees Celsius;

2. Humidity range: 50%-75%;

3. Cleanliness level of the workshop: 100,000 grade;

Equipment volume and load characteristics:

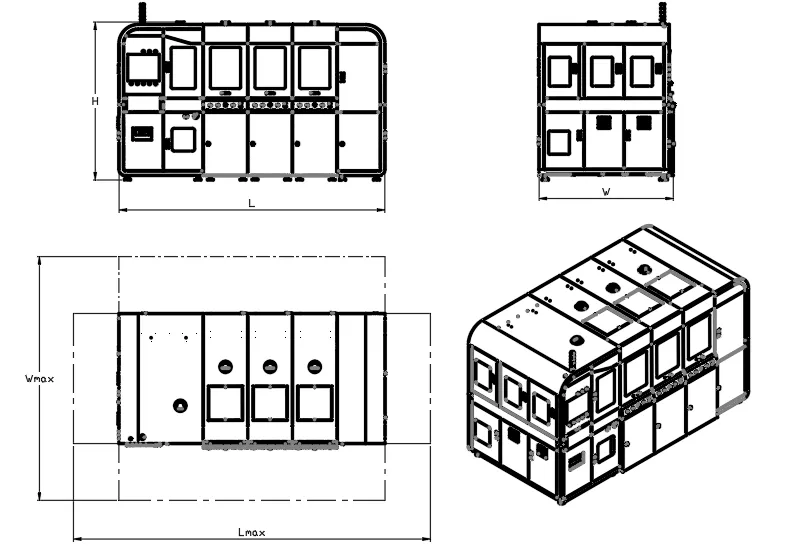

1. Equipment dimensions and weight:

120 Tons Auto Molding System With 12KW Heating Power

Overall dimensions (mm)
L x W x H		 Dimensions after door opening (mm)
Lmax * Wmax * Hmax		 Equipment weight (T)
With 1 press 2400*1800*2100 3800*3300*2100 4
Equipped with 2 presses 3000*1800*2100 4400*3300*2100 5.8
Equipped with 3 presses 3600*1800*2100 5000*3300*2100 7.6
Equipped with 4 presses 4200*1800*2100 5600*3300*2100 9.4

Foundation use requirements:

Bearing capacity 2 tons/square meter;

Equipment connection requirements:

1. Equipment power:

Voltage Power ( kW) Cable size( mm2)
With 1 press

AC 380V

50/60HZ

 15 6
Equipped with 2 presses 23 10
Equipped with 3 presses 31 16
Equipped with 4 presses 39 16

2. Gas requirements:

3. Cooling system: Not required

4. Exhaust ventilation requirements: 150mm ventilation pipe
